铝包钢芯耐热铝合金绞线
产品类别:铝包钢绞线

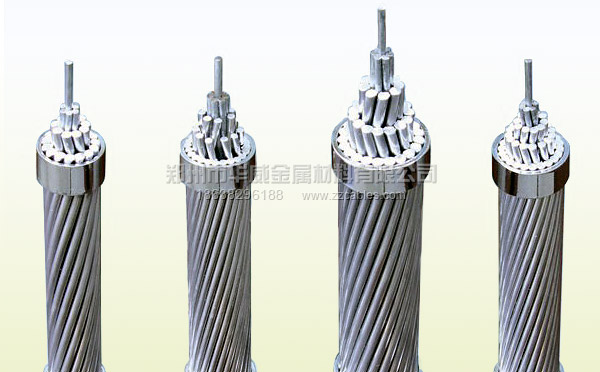

产品名称:铝包钢芯耐热铝合金绞线
点击次数:
摘要:
铝包钢芯耐热铝合金绞线:铝包钢绞线和耐热铝合金绞线是我公司的核心及优势产品,而铝包钢芯耐热铝合金绞线是将我公司的优势产品的结合,已经在国内多条电力线路应用。
产品名称:铝包钢芯耐热铝合金绞线
点击次数:
摘要:
铝包钢芯耐热铝合金绞线:铝包钢绞线和耐热铝合金绞线是我公司的核心及优势产品,而铝包钢芯耐热铝合金绞线是将我公司的优势产品的结合,已经在国内多条电力线路应用。
铝包钢芯耐热铝合金绞线的参数和性能:
JNRLH58/LB1A铝包钢芯58%IACS耐热铝合金导线性能参数
标称截面 | 结构 | 计算截面 | 外径 | 20℃直流电阻 | 额定抗拉力 | 单位重量 | 参考截流量(40℃) | |||||
铝 | 钢 | 铝 | 钢 | 合计 | 90℃ | 120℃ | 150℃ | |||||
50/8 | 6/3.20 | 1/3.20 | 48.25 | 8.04 | 56.29 | 9.60 | 0.5906 | 17.46 | 185.40 | 237 | 303 | 354 |
70/10 | 6/3.80 | 1/3.80 | 68.05 | 11.34 | 79.39 | 11.40 | 0.4187 | 23.50 | 261.50 | 294 | 378 | 442 |
70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.40 | 13.60 | 0.3606 | 60.38 | 461.70 | 331 | 428 | 503 |
95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.82 | 114.00 | 13.87 | 0.2968 | 37.71 | 386.00 | 367 | 475 | 557 |
95/55 | 12/3.20 | 7/3.20 | 96.51 | 56.30 | 152.80 | 16.00 | 0.2605 | 83.19 | 639.10 | 406 | 528 | 622 |
120/7 | 18/2.90 | 1/2.90 | 118.90 | 6.61 | 125.50 | 14.50 | 0.2498 | 27.67 | 371.10 | 405 | 524 | 616 |
120/25 | 7/4.72 | 7/2.10 | 122.50 | 24.25 | 146.80 | 15.74 | 0.2305 | 48.58 | 497.10 | 430 | 559 | 657 |
120/70 | 12/3.60 | 7/3.60 | 122.20 | 71.25 | 193.50 | 18.00 | 0.2058 | 101.02 | 809.00 | 472 | 615 | 725 |
150/8 | 18/3.20 | 1/3.20 | 144.80 | 8.04 | 152.80 | 16.00 | 0.2051 | 33.11 | 451.80 | 458 | 595 | 701 |
150/20 | 24/2.78 | 7/1.85 | 145.70 | 18.82 | 164.70 | 16.67 | 0.1991 | 46.80 | 527.10 | 470 | 612 | 720 |
185/10 | 18/3.60 | 1/3.60 | 183.20 | 10.18 | 193.40 | 18.00 | 0.1621 | 41.28 | 571.70 | 531 | 693 | 817 |
185/25 | 2/3.15 | 7/2.10 | 187.00 | 24.25 | 211.30 | 18.90 | 0.1551 | 59.39 | 676.50 | 550 | 719 | 848 |
185/30 | 26/2.98 | 7/2.32 | 181.30 | 29.59 | 210.90 | 18.88 | 0.1583 | 64.88 | 696.40 | 545 | 711 | 840 |
210/10 | 18/3.80 | 1/3.80 | 204.10 | 11.34 | 215.50 | 19.00 | 0.1455 | 45.54 | 636.90 | 569 | 743 | 877 |
210/25 | 24/3.33 | 7/2.22 | 209.00 | 27.10 | 236.10 | 19.98 | 0.1388 | 66.38 | 756.00 | 590 | 772 | 913 |
210/35 | 26.3.22 | 7.2.50 | 211.70 | 34.36 | 246.10 | 20.38 | 0.1356 | 75.53 | 811.90 | 600 | 786 | 929 |
210/50 | 30/2.98 | 7/2.98 | 209.20 | 48.82 | 258.10 | 20.86 | 0.1341 | 92.47 | 901.20 | 607 | 796 | 941 |
240/30 | 24/3.60 | 7/2.40 | 211.30 | 31.67 | 276.00 | 21.60 | 0.1187 | 77.58 | 883.70 | 651 | 855 | 1011 |
240/40 | 26/3.42 | 7/2.66 | 238.80 | 38.90 | 277.70 | 21.66 | 0.1202 | 85.37 | 916.80 | 648 | 850 | 1006 |
240/55 | 30/3.20 | 7/3.20 | 241.30 | 56.30 | 297.80 | 22.40 | 0.1163 | 106.65 | 1039.40 | 664 | 873 | 1034 |
300/15 | 42/3.00 | 7/1.67 | 296.90 | 15.33 | 312.20 | 23.01 | 0.1004 | 66.49 | 921.20 | 720 | 947 | 1122 |
300/20 | 45/2.93 | 7/1.95 | 303.40 | 20.91 | 324.30 | 23.43 | 0.0978 | 74.24 | 976.80 | 733 | 965 | 1143 |
300/25 | 48/2.85 | 7/2.22 | 306.20 | 27.10 | 333.30 | 23.76 | 0.0962 | 83.35 | 1025.30 | 742 | 977 | 1158 |
300/40 | 24/3.99 | 7/2.66 | 300.10 | 38.90 | 339.00 | 23.94 | 0.0967 | 94.40 | 1085.50 | 741 | 976 | 1158 |
300/50 | 26/3.83 | 7/2.98 | 299.50 | 48.82 | 348.40 | 24.26 | 0.0958 | 106.20 | 1150.10 | 747 | 985 | 1168 |
300/70 | 30/3.60 | 7/3.60 | 305.40 | 71.25 | 376.60 | 25.20 | 0.0919 | 130.70 | 1315.50 | 771 | 1017 | 1207 |
400/20 | 42/3.51 | 7/1.95 | 406.40 | 20.91 | 427.30 | 26.90 | 0.0734 | 90.93 | 1260.40 | 876 | 1160 | 1378 |
400/25 | 45/3.33 | 7/2.22 | 391.90 | 27.10 | 419.00 | 26.60 | 0.0757 | 96.01 | 1262.30 | 861 | 1138 | 1352 |
400/35 | 48/3.22 | 7/2.50 | 390.90 | 34.36 | 425.20 | 26.80 | 0.0754 | 104.56 | 1307.40 | 864 | 1143 | 1358 |
400/50 | 54/3.07 | 7/3.07 | 399.70 | 51.82 | 451.50 | 27.60 | 0.0727 | 126.94 | 1448.50 | 887 | 1175 | 1396 |
400/65 | 26/4.42 | 7/3.44 | 398.90 | 65.06 | 464.00 | 28.00 | 0.0719 | 140.32 | 1534.20 | 895 | 1186 | 1411 |
400/95 | 30/4.16 | 19/2.50 | 407.80 | 93.27 | 501.00 | 29.10 | 0.0689 | 175.35 | 1721.70 | 923 | 1226 | 1459 |
500/35 | 45/3.75 | 7/2.50 | 497.00 | 34.36 | 531.40 | 30.00 | 0.0597 | 107.30 | 1354.30 | 999 | 1328 | 1582 |
500/45 | 48/3.60 | 7/2.80 | 488.60 | 43.10 | 531.70 | 30.00 | 0.0603 | 132.23 | 1658.30 | 994 | 1321 | 1574 |
500/65 | 54/3.44 | 7/3.44 | 501.90 | 65.06 | 566.90 | 31.00 | 0.0579 | 155.92 | 1782.00 | 1023 | 1362 | 1623 |
630/45 | 45/4.20 | 7.2.80 | 623.50 | 43.10 | 666.60 | 33.60 | 0.0476 | 150.86 | 2008.20 | 1150 | 1536 | 1834 |
630/55 | 48/4.12 | 7/3.20 | 639.90 | 56.30 | 696.20 | 34.30 | 0.0460 | 169.30 | 2140.50 | 1175 | 1572 | 1878 |
630/80 | 54/3.87 | 19/2.32 | 636.20 | 80.32 | 715.50 | 34.80 | 0.0457 | 197.54 | 2293.10 | 1184 | 1584 | 1893 |
800/55 | 45/4.80 | 7/3.20 | 814.30 | 56.30 | 870.60 | 38.40 | 0.0364 | 197.03 | 2622.70 | 1355 | 1822 | 2183 |
800/70 | 48/4.63 | 7/3.60 | 808.20 | 71.25 | 879.40 | 38.60 | 0.0364 | 209.73 | 2704.40 | 1357 | 1825 | 2187 |
800/100 | 54/4.33 | 19/2.60 | 795.20 | 100.90 | 896.10 | 39.00 | 0.0366 | 247.52 | 2869.60 | 1362 | 1831 | 2194 |
1000/125 | 54/4.84 | 19/2.90 | 993.50 | 125.50 | 1119.00 | 43.54 | 0.0293 | 308.57 | 3581.40 | 1557 | 2106 | 2531 |
1440/120 | 84/4.67 | 19/2.80 | 1439.00 | 117.00 | 1556.00 | 51.36 | 0.0206 | 369.20 | 4759.90 | 1903 | 2601 | 3145 |
JNRLH58/LB14铝包钢芯58%IACS耐热铝合金导线性能参数
标称截面 | 结构 | 计算截面 | 外径 | 20℃直流电阻 | 额定抗拉力 | 单位重量 | 参考截流量(40℃) | |||||
铝 | 钢 | 铝 | 钢 | 合计 | 90℃ | 120℃ | 150℃ | |||||
50/8 | 6/3.20 | 1/3.20 | 48.25 | 8.04 | 56.29 | 9.60 | 0.6010 | 18.91 | 189.80 | 235 | 300 | 351 |
70/10 | 6/3.80 | 1/3.80 | 68.05 | 11.34 | 79.39 | 11.40 | 0.4261 | 26.22 | 267.70 | 291 | 375 | 438 |
70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.40 | 13.60 | 0.3810 | 68.92 | 484.20 | 322 | 417 | 489 |
95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.82 | 114.00 | 13.87 | 0.3030 | 42.42 | 396.40 | 363 | 470 | 552 |
95/55 | 12/3.20 | 7/3.20 | 96.51 | 56.30 | 152.80 | 16.00 | 0.2753 | 97.27 | 670.20 | 395 | 514 | 605 |
120/7 | 18/2.90 | 1/2.90 | 118.90 | 6.61 | 125.50 | 14.50 | 0.2513 | 29.06 | 374.70 | 403 | 523 | 614 |
120/25 | 7/4.72 | 7/2.10 | 122.50 | 24.25 | 146.80 | 15.74 | 0.2353 | 54.64 | 510.50 | 426 | 553 | 651 |
120/70 | 12/3.60 | 7/3.60 | 122.20 | 71.25 | 193.50 | 18.00 | 0.2174 | 115.27 | 848.40 | 459 | 599 | 706 |
150/8 | 18/3.20 | 1/3.20 | 144.80 | 8.04 | 152.80 | 16.00 | 0.2064 | 34.55 | 456.20 | 457 | 593 | 698 |
150/20 | 24/2.78 | 7/1.85 | 145.70 | 18.82 | 164.70 | 16.67 | 0.2019 | 51.51 | 537.50 | 467 | 607 | 715 |
185/10 | 18/3.60 | 1/3.60 | 183.20 | 10.18 | 193.40 | 18.00 | 0.1631 | 43.32 | 577.30 | 530 | 691 | 815 |
185/25 | 2/3.15 | 7/2.10 | 187.00 | 24.25 | 211.30 | 18.90 | 0.1573 | 65.46 | 676.50 | 546 | 714 | 843 |
185/30 | 26/2.98 | 7/2.32 | 181.30 | 29.59 | 210.90 | 18.88 | 0.1610 | 72.28 | 712.80 | 540 | 705 | 833 |
210/10 | 18/3.80 | 1/3.80 | 204.10 | 11.34 | 215.50 | 19.00 | 0.1464 | 48.26 | 643.10 | 567 | 741 | 875 |
210/25 | 24/3.33 | 7/2.22 | 209.00 | 27.10 | 236.10 | 19.98 | 0.1407 | 73.15 | 771.00 | 586 | 767 | 906 |
210/35 | 26.3.22 | 7.2.50 | 211.70 | 34.36 | 246.10 | 20.38 | 0.1379 | 82.74 | 830.90 | 595 | 780 | 921 |
210/50 | 30/2.98 | 7/2.98 | 209.20 | 48.82 | 258.10 | 20.86 | 0.1374 | 102.73 | 928.20 | 600 | 786 | 930 |
240/30 | 24/3.60 | 7/2.40 | 211.30 | 31.67 | 276.00 | 21.60 | 0.1204 | 84.23 | 901.20 | 647 | 849 | 1004 |
240/40 | 26/3.42 | 7/2.66 | 238.80 | 38.90 | 277.70 | 21.66 | 0.1223 | 93.53 | 938.30 | 642 | 843 | 997 |
240/55 | 30/3.20 | 7/3.20 | 241.30 | 56.30 | 297.80 | 22.40 | 0.1191 | 116.78 | 1070.50 | 657 | 863 | 1021 |
300/15 | 42/3.00 | 7/1.67 | 296.90 | 15.33 | 312.20 | 23.01 | 0.1010 | 70.33 | 929.60 | 718 | 944 | 1118 |
300/20 | 45/2.93 | 7/1.95 | 303.40 | 20.91 | 324.30 | 23.43 | 0.0985 | 79.47 | 988.30 | 730 | 961 | 1139 |
300/25 | 48/2.85 | 7/2.22 | 306.20 | 27.10 | 333.30 | 23.76 | 0.0939 | 90.12 | 1040.30 | 751 | 989 | 1172 |
300/40 | 24/3.99 | 7/2.66 | 300.10 | 38.90 | 339.00 | 23.94 | 0.0980 | 102.56 | 1107.00 | 736 | 970 | 1150 |
300/50 | 26/3.83 | 7/2.98 | 299.50 | 48.82 | 348.40 | 24.26 | 0.0975 | 116.46 | 1177.00 | 741 | 976 | 1158 |
300/70 | 30/3.60 | 7/3.60 | 305.40 | 71.25 | 376.60 | 25.20 | 0.0941 | 144.95 | 1354.80 | 762 | 1005 | 1193 |
400/20 | 42/3.51 | 7/1.95 | 406.40 | 20.91 | 427.30 | 26.90 | 0.0738 | 96.16 | 1271.90 | 874 | 1157 | 1375 |
400/25 | 45/3.33 | 7/2.22 | 391.90 | 27.10 | 419.00 | 26.60 | 0.0762 | 102.78 | 1277.30 | 858 | 1135 | 1348 |
400/35 | 48/3.22 | 7/2.50 | 390.90 | 34.36 | 425.20 | 26.80 | 0.0761 | 111.77 | 1326.30 | 860 | 1138 | 1352 |
400/50 | 54/3.07 | 7/3.07 | 399.70 | 51.82 | 451.50 | 27.60 | 0.0738 | 136.26 | 1477.10 | 880 | 1166 | 1386 |
400/65 | 26/4.42 | 7/3.44 | 398.90 | 65.06 | 464.00 | 28.00 | 0.0732 | 153.34 | 1570.10 | 887 | 1176 | 1398 |
400/95 | 30/4.16 | 19/2.50 | 407.80 | 93.27 | 501.00 | 29.10 | 0.0706 | 194.94 | 1773.30 | 912 | 1211 | 1441 |
500/35 | 45/3.75 | 7/2.50 | 497.00 | 34.36 | 531.40 | 30.00 | 0.0601 | 114.51 | 1373.20 | 996 | 1323 | 1576 |
500/45 | 48/3.60 | 7/2.80 | 488.60 | 43.10 | 531.70 | 30.00 | 0.0609 | 141.29 | 1682.10 | 989 | 1315 | 1566 |
500/65 | 54/3.44 | 7/3.44 | 501.90 | 65.06 | 566.90 | 31.00 | 0.0587 | 168.94 | 1818.00 | 1016 | 1352 | 1612 |
630/45 | 45/4.20 | 7.2.80 | 623.50 | 43.10 | 666.60 | 33.60 | 0.0479 | 159.91 | 2032.00 | 1146 | 1531 | 1829 |
630/55 | 48/4.12 | 7/3.20 | 639.90 | 56.30 | 696.20 | 34.30 | 0.0465 | 179.44 | 2171.60 | 1169 | 1563 | 1868 |
630/80 | 54/3.87 | 19/2.32 | 636.20 | 80.32 | 715.50 | 34.80 | 0.0464 | 214.41 | 2337.60 | 1175 | 1572 | 1879 |
800/55 | 45/4.80 | 7/3.20 | 814.30 | 56.30 | 870.60 | 38.40 | 0.0367 | 207.17 | 2653.80 | 1350 | 1814 | 2175 |
800/70 | 48/4.63 | 7/3.60 | 808.20 | 71.25 | 879.40 | 38.60 | 0.0368 | 223.98 | 2743.80 | 1350 | 1815 | 2176 |
800/100 | 54/4.33 | 19/2.60 | 795.20 | 100.90 | 896.10 | 39.00 | 0.0371 | 268.71 | 2925.50 | 1353 | 1819 | 2180 |
1000/125 | 54/4.84 | 19/2.90 | 993.50 | 125.50 | 1119.00 | 43.54 | 0.0297 | 334.92 | 3651.00 | 1547 | 2092 | 2515 |
1440/120 | 84/4.67 | 19/2.80 | 1439.00 | 117.00 | 1556.00 | 51.36 | 0.0207 | 393.77 | 4824.80 | 1899 | 2595 | 3139 |
JNRLH60/LB1A铝包钢芯60%IACS耐热铝合金导线性能参数
标称截面 | 结构 | 计算截面 | 外径 | 20℃直流电阻 | 额定抗拉力 | 单位重量 | 参考截流量(40℃) | |||||
铝 | 钢 | 铝 | 钢 | 合计 | 90℃ | 120℃ | 150℃ | |||||
50/8 | 6/3.20 | 1/3.20 | 48.25 | 8.04 | 56.29 | 9.60 | 0.5720 | 17.46 | 185.40 | 240 | 308 | 359 |
70/10 | 6/3.80 | 1/3.80 | 68.05 | 11.34 | 79.39 | 11.40 | 0.4055 | 23.50 | 261.50 | 298 | 384 | 449 |
70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.40 | 13.60 | 0.3505 | 60.38 | 461.70 | 336 | 434 | 510 |
95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.82 | 114.00 | 13.87 | 0.2876 | 37.71 | 386.00 | 373 | 482 | 566 |
95/55 | 12/3.20 | 7/3.20 | 96.51 | 56.30 | 152.80 | 16.00 | 0.2533 | 83.19 | 639.10 | 412 | 536 | 630 |
120/7 | 18/2.90 | 1/2.90 | 118.90 | 6.61 | 125.50 | 14.50 | 0.2416 | 27.67 | 371.10 | 411 | 533 | 626 |
120/25 | 7/4.72 | 7/2.10 | 122.50 | 24.25 | 146.80 | 15.74 | 0.2233 | 48.58 | 497.10 | 437 | 568 | 668 |
120/70 | 12/3.60 | 7/3.60 | 122.20 | 71.25 | 193.50 | 18.00 | 0.2000 | 101.02 | 809.00 | 478 | 624 | 736 |
150/8 | 18/3.20 | 1/3.20 | 144.80 | 8.04 | 152.80 | 16.00 | 0.1984 | 33.11 | 451.80 | 466 | 605 | 712 |
150/20 | 24/2.78 | 7/1.85 | 145.70 | 18.82 | 164.70 | 16.67 | 0.1927 | 46.80 | 527.10 | 478 | 622 | 732 |
185/10 | 18/3.60 | 1/3.60 | 183.20 | 10.18 | 193.40 | 18.00 | 0.1568 | 41.28 | 571.70 | 540 | 705 | 831 |
185/25 | 2/3.15 | 7/2.10 | 187.00 | 24.25 | 211.30 | 18.90 | 0.1502 | 59.39 | 676.50 | 559 | 730 | 862 |
185/30 | 26/2.98 | 7/2.32 | 181.30 | 29.59 | 210.90 | 18.88 | 0.1533 | 64.88 | 696.40 | 553 | 723 | 853 |
210/10 | 18/3.80 | 1/3.80 | 204.10 | 11.34 | 215.50 | 19.00 | 0.1408 | 45.54 | 636.90 | 578 | 756 | 892 |
210/25 | 24/3.33 | 7/2.22 | 209.00 | 27.10 | 236.10 | 19.98 | 0.1343 | 66.38 | 756.00 | 600 | 785 | 928 |
210/35 | 26.3.22 | 7.2.50 | 211.70 | 34.36 | 246.10 | 20.38 | 0.1313 | 75.53 | 811.90 | 610 | 799 | 944 |
210/50 | 30/2.98 | 7/2.98 | 209.20 | 48.82 | 258.10 | 20.86 | 0.1300 | 92.47 | 901.20 | 617 | 808 | 956 |
240/30 | 24/3.60 | 7/2.40 | 211.30 | 31.67 | 276.00 | 21.60 | 0.1149 | 77.58 | 883.70 | 662 | 869 | 1028 |
240/40 | 26/3.42 | 7/2.66 | 238.80 | 38.90 | 277.70 | 21.66 | 0.1164 | 85.37 | 916.80 | 658 | 864 | 1022 |
240/55 | 30/3.20 | 7/3.20 | 241.30 | 56.30 | 297.80 | 22.40 | 0.1127 | 106.65 | 1039.40 | 675 | 887 | 1050 |
300/15 | 42/3.00 | 7/1.67 | 296.90 | 15.33 | 312.20 | 23.01 | 0.0971 | 66.49 | 921.20 | 732 | 963 | 1141 |
300/20 | 45/2.93 | 7/1.95 | 303.40 | 20.91 | 324.30 | 23.43 | 0.0946 | 74.24 | 976.80 | 745 | 981 | 1162 |
300/25 | 48/2.85 | 7/2.22 | 306.20 | 27.10 | 333.30 | 23.76 | 0.0931 | 83.35 | 1025.30 | 754 | 993 | 1177 |
300/40 | 24/3.99 | 7/2.66 | 300.10 | 38.90 | 339.00 | 23.94 | 0.0936 | 94.40 | 1085.50 | 753 | 992 | 1176 |
300/50 | 26/3.83 | 7/2.98 | 299.50 | 48.82 | 348.40 | 24.26 | 0.0928 | 106.20 | 1150.10 | 759 | 1001 | 1187 |
300/70 | 30/3.60 | 7/3.60 | 305.40 | 71.25 | 376.60 | 25.20 | 0.0890 | 130.70 | 1315.50 | 783 | 1033 | 1226 |
400/20 | 42/3.51 | 7/1.95 | 406.40 | 20.91 | 427.30 | 26.90 | 0.0710 | 90.93 | 1260.40 | 891 | 1179 | 1401 |
400/25 | 45/3.33 | 7/2.22 | 391.90 | 27.10 | 419.00 | 26.60 | 0.0732 | 96.01 | 1262.30 | 875 | 1157 | 1375 |
400/35 | 48/3.22 | 7/2.50 | 390.90 | 34.36 | 425.20 | 26.80 | 0.0729 | 104.56 | 1307.40 | 879 | 1162 | 1381 |
400/50 | 54/3.07 | 7/3.07 | 399.70 | 51.82 | 451.50 | 27.60 | 0.0704 | 126.94 | 1448.50 | 901 | 1193 | 1419 |
400/65 | 26/4.42 | 7/3.44 | 398.90 | 65.06 | 464.00 | 28.00 | 0.0697 | 140.32 | 1534.20 | 909 | 1205 | 1433 |
400/95 | 30/4.16 | 19/2.50 | 407.80 | 93.27 | 501.00 | 29.10 | 0.0668 | 175.35 | 1721.70 | 938 | 1245 | 1481 |
500/35 | 45/3.75 | 7/2.50 | 497.00 | 34.36 | 531.40 | 30.00 | 0.0577 | 107.30 | 1354.30 | 1016 | 1350 | 1608 |
500/45 | 48/3.60 | 7/2.80 | 488.60 | 43.10 | 531.70 | 30.00 | 0.0583 | 132.23 | 1658.30 | 1011 | 1343 | 1600 |
500/65 | 54/3.44 | 7/3.44 | 501.90 | 65.06 | 566.90 | 31.00 | 0.0561 | 155.92 | 1782.00 | 1039 | 1383 | 1648 |
630/45 | 45/4.20 | 7.2.80 | 623.50 | 43.10 | 666.60 | 33.60 | 0.0460 | 150.86 | 2008.20 | 1169 | 1562 | 1865 |
630/55 | 48/4.12 | 7/3.20 | 639.90 | 56.30 | 696.20 | 34.30 | 0.0445 | 169.30 | 2140.50 | 1194 | 1597 | 1909 |
630/80 | 54/3.87 | 19/2.32 | 636.20 | 80.32 | 715.50 | 34.80 | 0.0443 | 197.54 | 2293.10 | 1202 | 1608 | 1922 |
800/55 | 45/4.80 | 7/3.20 | 814.30 | 56.30 | 870.60 | 38.40 | 0.0352 | 197.03 | 2622.70 | 1376 | 1851 | 2218 |
800/70 | 48/4.63 | 7/3.60 | 808.20 | 71.25 | 879.40 | 38.60 | 0.0353 | 209.73 | 2704.40 | 1376 | 1851 | 2219 |
800/100 | 54/4.33 | 19/2.60 | 795.20 | 100.90 | 896.10 | 39.00 | 0.0354 | 247.52 | 2869.60 | 1383 | 1860 | 2230 |
1000/125 | 54/4.84 | 19/2.90 | 993.50 | 125.50 | 1119.00 | 43.54 | 0.0284 | 308.57 | 3581.40 | 1579 | 2136 | 2569 |
1440/120 | 84/4.67 | 19/2.80 | 1439.00 | 117.00 | 1556.00 | 51.36 | 0.0199 | 369.20 | 4759.90 | 1932 | 2640 | 3194 |
JNRLH60/LB14铝包钢芯60%IACS耐热铝合金导线性能参数
标称截面 | 结构 | 计算截面 | 外径 | 20℃直流电阻 | 额定抗拉力 | 单位重量 | 参考截流量(40℃) | |||||
铝 | 钢 | 铝 | 钢 | 合计 | 90℃ | 120℃ | 150℃ | |||||
50/8 | 6/3.20 | 1/3.20 | 48.25 | 8.04 | 56.29 | 9.60 | 0.5817 | 18.91 | 189.80 | 238 | 305 | 356 |
70/10 | 6/3.80 | 1/3.80 | 68.05 | 11.34 | 79.39 | 11.40 | 0.4125 | 26.22 | 267.70 | 296 | 381 | 446 |
70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.40 | 13.60 | 0.3698 | 68.92 | 484.20 | 327 | 423 | 496 |
95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.82 | 114.00 | 13.87 | 0.2934 | 42.42 | 396.40 | 369 | 477 | 561 |
95/55 | 12/3.20 | 7/3.20 | 96.51 | 56.30 | 152.80 | 16.00 | 0.2672 | 97.27 | 670.20 | 401 | 522 | 614 |
120/7 | 18/2.90 | 1/2.90 | 118.90 | 6.61 | 125.50 | 14.50 | 0.2431 | 29.06 | 374.70 | 410 | 531 | 624 |
120/25 | 7/4.72 | 7/2.10 | 122.50 | 24.25 | 146.80 | 15.74 | 0.2278 | 54.64 | 510.50 | 433 | 562 | 661 |
120/70 | 12/3.60 | 7/3.60 | 122.20 | 71.25 | 193.50 | 18.00 | 0.2110 | 115.27 | 848.40 | 466 | 608 | 716 |
150/8 | 18/3.20 | 1/3.20 | 144.80 | 8.04 | 152.80 | 16.00 | 0.1996 | 34.55 | 456.20 | 464 | 603 | 710 |
150/20 | 24/2.78 | 7/1.85 | 145.70 | 18.82 | 164.70 | 16.67 | 0.1953 | 51.51 | 537.50 | 475 | 617 | 727 |
185/10 | 18/3.60 | 1/3.60 | 183.20 | 10.18 | 193.40 | 18.00 | 0.1578 | 43.32 | 577.30 | 539 | 703 | 828 |
185/25 | 2/3.15 | 7/2.10 | 187.00 | 24.25 | 211.30 | 18.90 | 0.1522 | 65.46 | 676.50 | 555 | 726 | 856 |
185/30 | 26/2.98 | 7/2.32 | 181.30 | 29.59 | 210.90 | 18.88 | 0.1559 | 72.28 | 712.80 | 549 | 717 | 846 |
210/10 | 18/3.80 | 1/3.80 | 204.10 | 11.34 | 215.50 | 19.00 | 0.1416 | 48.26 | 643.10 | 577 | 753 | 889 |
210/25 | 24/3.33 | 7/2.22 | 209.00 | 27.10 | 236.10 | 19.98 | 0.1362 | 73.15 | 771.00 | 596 | 780 | 921 |
210/35 | 26.3.22 | 7.2.50 | 211.70 | 34.36 | 246.10 | 20.38 | 0.1335 | 82.74 | 830.90 | 605 | 792 | 936 |
210/50 | 30/2.98 | 7/2.98 | 209.20 | 48.82 | 258.10 | 20.86 | 0.1330 | 102.73 | 928.20 | 610 | 799 | 945 |
240/30 | 24/3.60 | 7/2.40 | 211.30 | 31.67 | 276.00 | 21.60 | 0.1165 | 84.23 | 901.20 | 657 | 863 | 1021 |
240/40 | 26/3.42 | 7/2.66 | 238.80 | 38.90 | 277.70 | 21.66 | 0.1183 | 93.53 | 938.30 | 653 | 857 | 1014 |
240/55 | 30/3.20 | 7/3.20 | 241.30 | 56.30 | 297.80 | 22.40 | 0.1153 | 116.78 | 1070.50 | 667 | 877 | 1038 |
300/15 | 42/3.00 | 7/1.67 | 296.90 | 15.33 | 312.20 | 23.01 | 0.0977 | 70.33 | 929.60 | 730 | 960 | 1137 |
300/20 | 45/2.93 | 7/1.95 | 303.40 | 20.91 | 324.30 | 23.43 | 0.0953 | 79.47 | 988.30 | 742 | 977 | 1158 |
300/25 | 48/2.85 | 7/2.22 | 306.20 | 27.10 | 333.30 | 23.76 | 0.0939 | 90.12 | 1040.30 | 751 | 989 | 1172 |
300/40 | 24/3.99 | 7/2.66 | 300.10 | 38.90 | 339.00 | 23.94 | 0.0948 | 102.56 | 1107.00 | 749 | 986 | 1169 |
300/50 | 26/3.83 | 7/2.98 | 299.50 | 48.82 | 348.40 | 24.26 | 0.0944 | 116.46 | 1177.00 | 753 | 992 | 1177 |
300/70 | 30/3.60 | 7/3.60 | 305.40 | 71.25 | 376.60 | 25.20 | 0.0911 | 144.95 | 1354.80 | 774 | 1022 | 1212 |
400/20 | 42/3.51 | 7/1.95 | 406.40 | 20.91 | 427.30 | 26.90 | 0.0713 | 96.16 | 1271.90 | 889 | 1177 | 1398 |
400/25 | 45/3.33 | 7/2.22 | 391.90 | 27.10 | 419.00 | 26.60 | 0.0737 | 102.78 | 1277.30 | 872 | 1154 | 1371 |
400/35 | 48/3.22 | 7/2.50 | 390.90 | 34.36 | 425.20 | 26.80 | 0.0736 | 111.77 | 1326.30 | 874 | 1157 | 1375 |
400/50 | 54/3.07 | 7/3.07 | 399.70 | 51.82 | 451.50 | 27.60 | 0.0714 | 136.26 | 1477.10 | 895 | 1185 | 1409 |
400/65 | 26/4.42 | 7/3.44 | 398.90 | 65.06 | 464.00 | 28.00 | 0.0708 | 153.34 | 1570.10 | 902 | 1195 | 1422 |
400/95 | 30/4.16 | 19/2.50 | 407.80 | 93.27 | 501.00 | 29.10 | 0.0683 | 194.94 | 1773.30 | 927 | 1231 | 1465 |
500/35 | 45/3.75 | 7/2.50 | 497.00 | 34.36 | 531.40 | 30.00 | 0.0582 | 114.51 | 1373.20 | 1011 | 1345 | 1602 |
500/45 | 48/3.60 | 7/2.80 | 488.60 | 43.10 | 531.70 | 30.00 | 0.0589 | 141.29 | 1682.10 | 1006 | 1337 | 1592 |
500/65 | 54/3.44 | 7/3.44 | 501.90 | 65.06 | 566.90 | 31.00 | 0.0568 | 168.94 | 1818.00 | 1033 | 1374 | 1638 |
630/45 | 45/4.20 | 7.2.80 | 623.50 | 43.10 | 666.60 | 33.60 | 0.0464 | 159.91 | 2032.00 | 1164 | 1555 | 1857 |
630/55 | 48/4.12 | 7/3.20 | 639.90 | 56.30 | 696.20 | 34.30 | 0.0450 | 179.44 | 2171.60 | 1188 | 1589 | 1898 |
630/80 | 54/3.87 | 19/2.32 | 636.20 | 80.32 | 715.50 | 34.80 | 0.0449 | 214.41 | 2337.60 | 1194 | 1597 | 1909 |
800/55 | 45/4.80 | 7/3.20 | 814.30 | 56.30 | 870.60 | 38.40 | 0.0355 | 207.17 | 2653.80 | 1371 | 1843 | 2209 |
800/70 | 48/4.63 | 7/3.60 | 808.20 | 71.25 | 879.40 | 38.60 | 0.0356 | 223.98 | 2743.80 | 1371 | 1844 | 2210 |
800/100 | 54/4.33 | 19/2.60 | 795.20 | 100.90 | 896.10 | 39.00 | 0.0359 | 268.71 | 2925.50 | 1374 | 1848 | 2215 |
1000/125 | 54/4.84 | 19/2.90 | 993.50 | 125.50 | 1119.00 | 43.54 | 0.0287 | 334.92 | 3651.00 | 1572 | 2126 | 2556 |
1440/120 | 84/4.67 | 19/2.80 | 1439.00 | 117.00 | 1556.00 | 51.36 | 0.0201 | 393.77 | 4824.80 | 1923 | 2629 | 3180 |
其他相关产品:
铝包钢芯铝绞线、铝包钢芯高强度铝合金绞线、铝包钢芯铝合金绞线、铝包钢芯耐热铝合金绞线、钢芯铝绞线
郑州市华威金属材料有限公司 合作伙伴:
中国铁建 | 国家电网公司 | 国家核电 | 中国风电 | 葛洲坝集团 |
上一篇:铝包钢芯铝合金绞线
下一篇:没有了
下一篇:没有了
